YOUR LEADING MANUFACTURER AND SUPPLIER OF CLEANROOM, CUSTODIAL AND HEALTHCARE LIGHTING

Robust and durable luminaires with a choice of polycarbonate or acrylic cover. Extruded aluminium body with die-cast ends. Long life silicone sponge gasket ensuring IP66 rating.

Zinc coated steel body powder coated white. Diffuser frame from 29mm aluminium profile with welded and linished corners and patented screwless fix catches for easy removal during installation and maintenance.

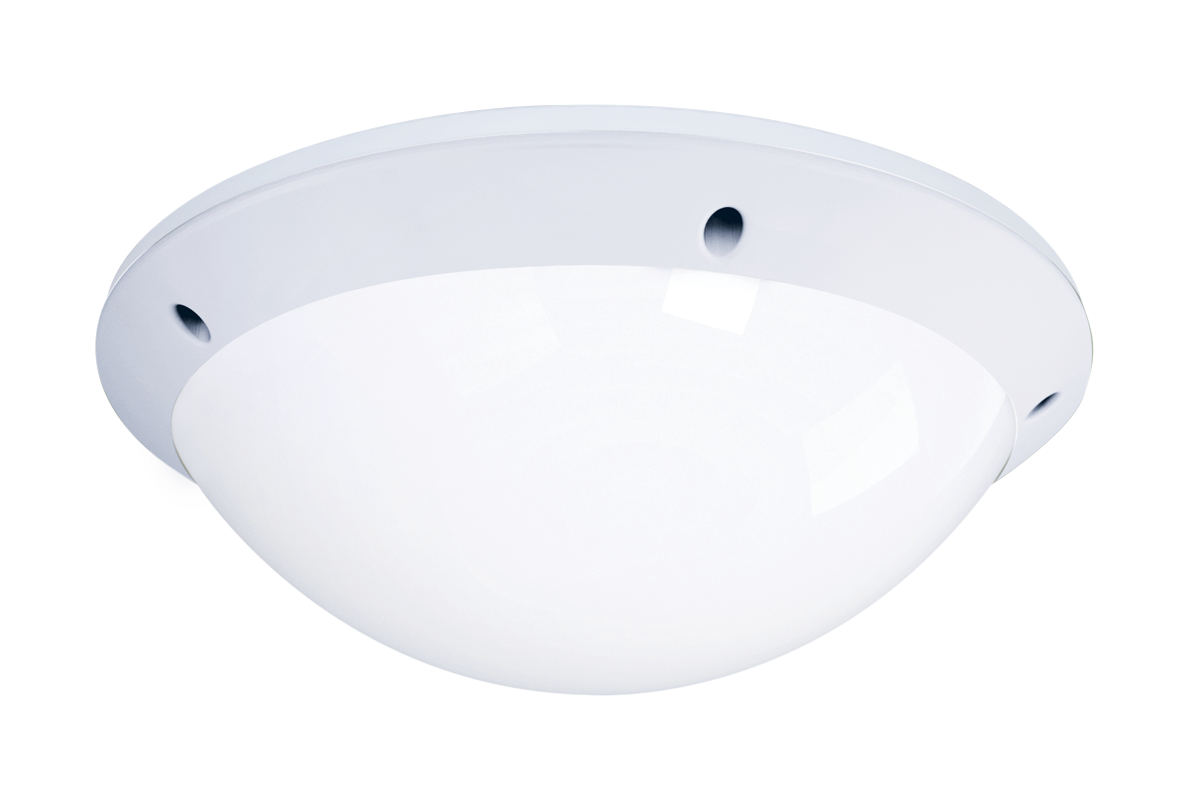

Strong spun steel body, injection moulded 5mm thick polycarbonate cover. Anti-ligature design. Anti-pick sealant can be used to seal the body whilst still allowing the cover to be removed for maintenance. Tamper-resistant pin Torx screw fixings (requires T25 tool). Microwave presence detector option with stand-by light. Fitted with 3000K or 4000K LEDs.

Zinc coated steel body powder coated white. Frame made from 55 mm extruded aluminium profile with welded and linished corners screw fixed as standard with screw less fix option to special order. Designed for lay-in and self seal into proprietary gasket grid ceilings with gel grid options available. Neoprene O-ring gaskets Satisfies the requirements of FS209D class 1000 ISO 14644 class 6 Emergency versions – 3 hour self-contained standard and self-test options Can be supplied with flying lead for rapid installation

Zinc coated steel body powder coated white. Frame made from 29mm extruded aluminium profile with welded and linished corners screw fixed to body. Surface cornice mounted White EPDM closed cell gaskets Satisfies the requirements of FS209D class 100 ISO 14644 class 5 Clear prismatic controller Emergency versions – 3 hour self-contained as standard with Dali, SmartScan and self-test options.

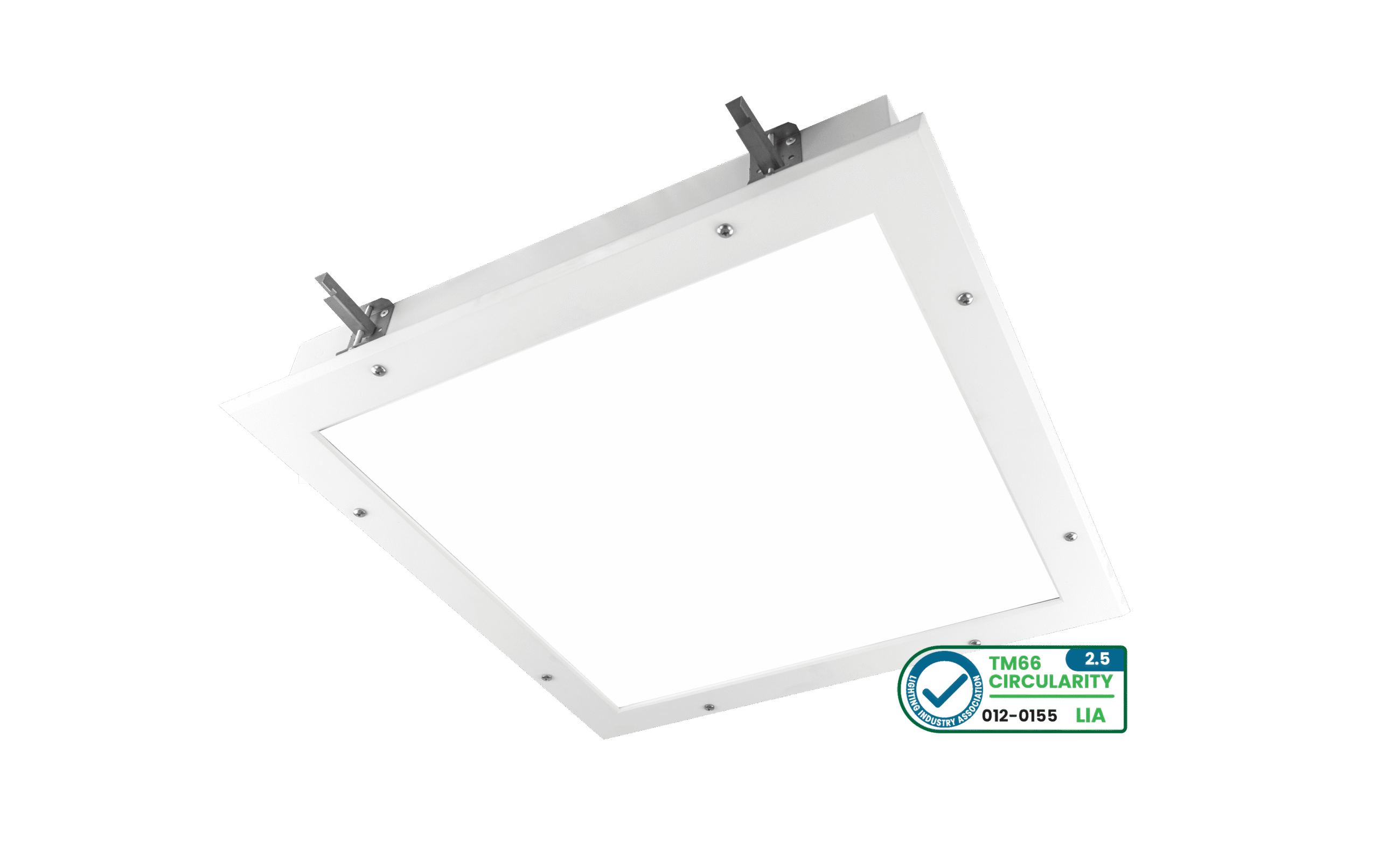

Highly efficient recessed luminaire with an efficacy range from 140-169 Llm/cW Zinc coated steel body powder coated white. Frame made from 55 mm chamfered profile extruded aluminium with welded and linished corners powder coated white. White EPDM closed cell gaskets Satin polycarbonate TP(a) diffuser fitted as standard Optional anti-glare lens with clear polycarbonate front panel combine to provide less than < 1500cd/m2 giving a UGR rating <19 High frequency gear as standard (dimming options available) Emergency versions – 3 hour self-contained as standard with self-test options Through access option, suffix catalogue number ‘+ AH’ LEDs mounted on removable thermally managed platform for future maintenance and replacement Fitted with CRI 80 LEDs (CRI 90 option available to special order).

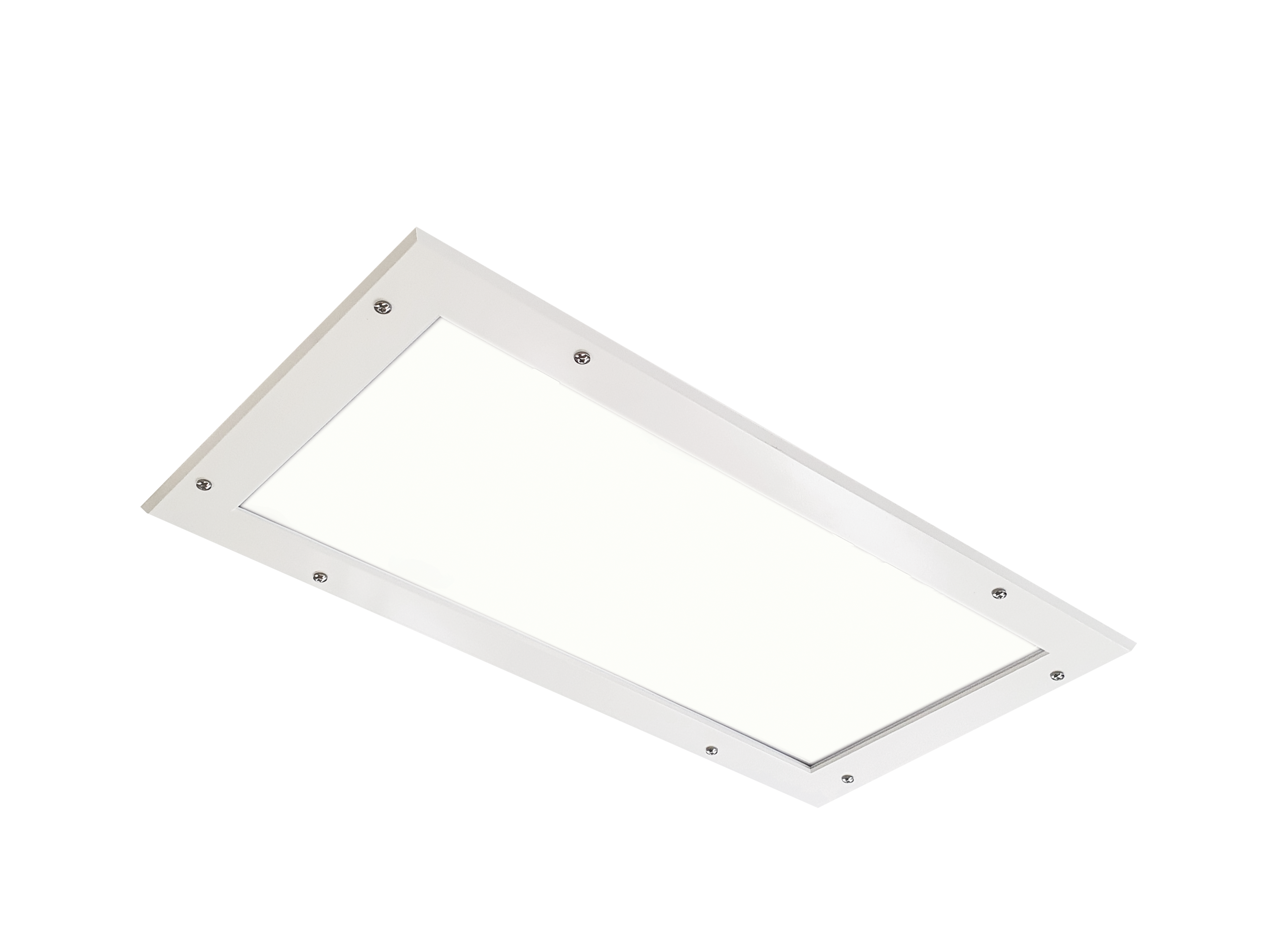

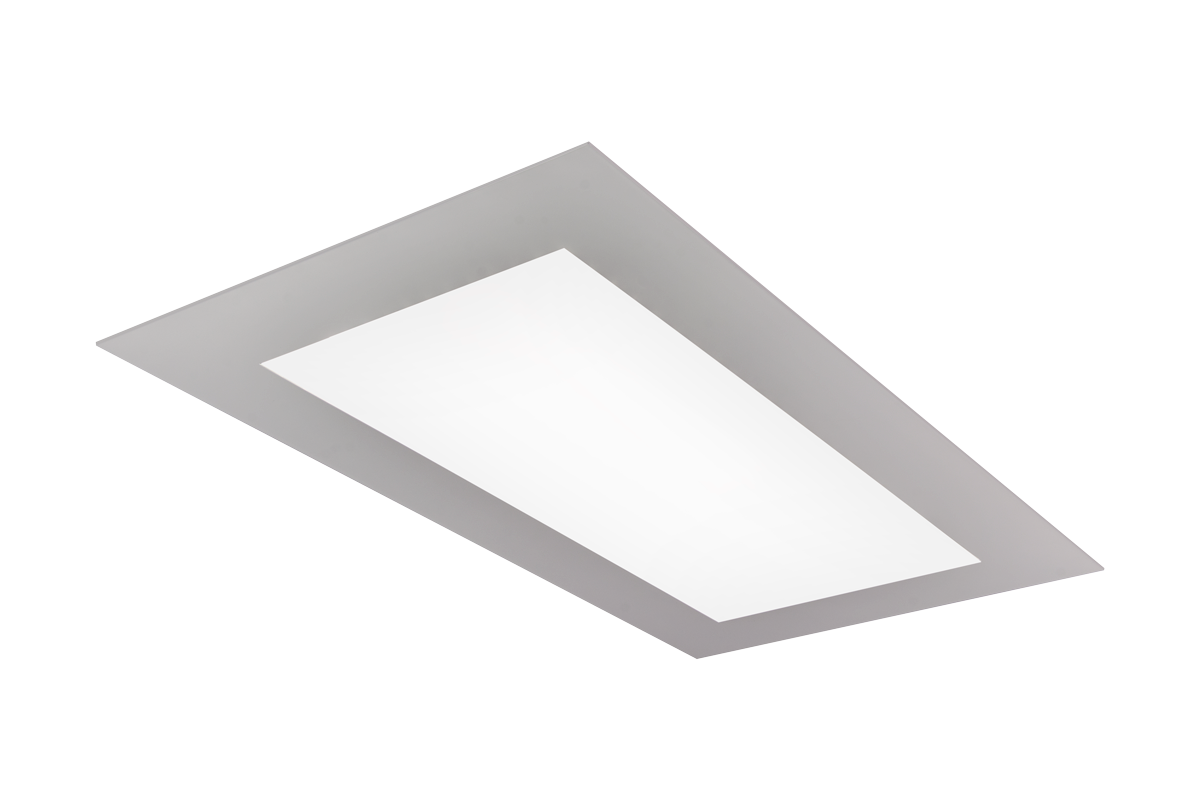

The Evo FA luminaire is a high performance front access walk-on luminaire. It is designed to flush fit (top & bottom ) into composite load bearing ceiling panels with a thickness of 60mm and upwards. The Evo FA is suitable for mounting heights of 2.8m up to 10m plus. 140+ Llm/cW

The Evo RA luminaire is a high performance rear access walk-on luminaire. It is designed to flush fit (top & bottom ) into composite load bearing ceiling panels with a thickness of 60mm and upwards. The Evo RA is suitable for mounting heights of 2.8m up to 10m plus. 140+ Llm/cW

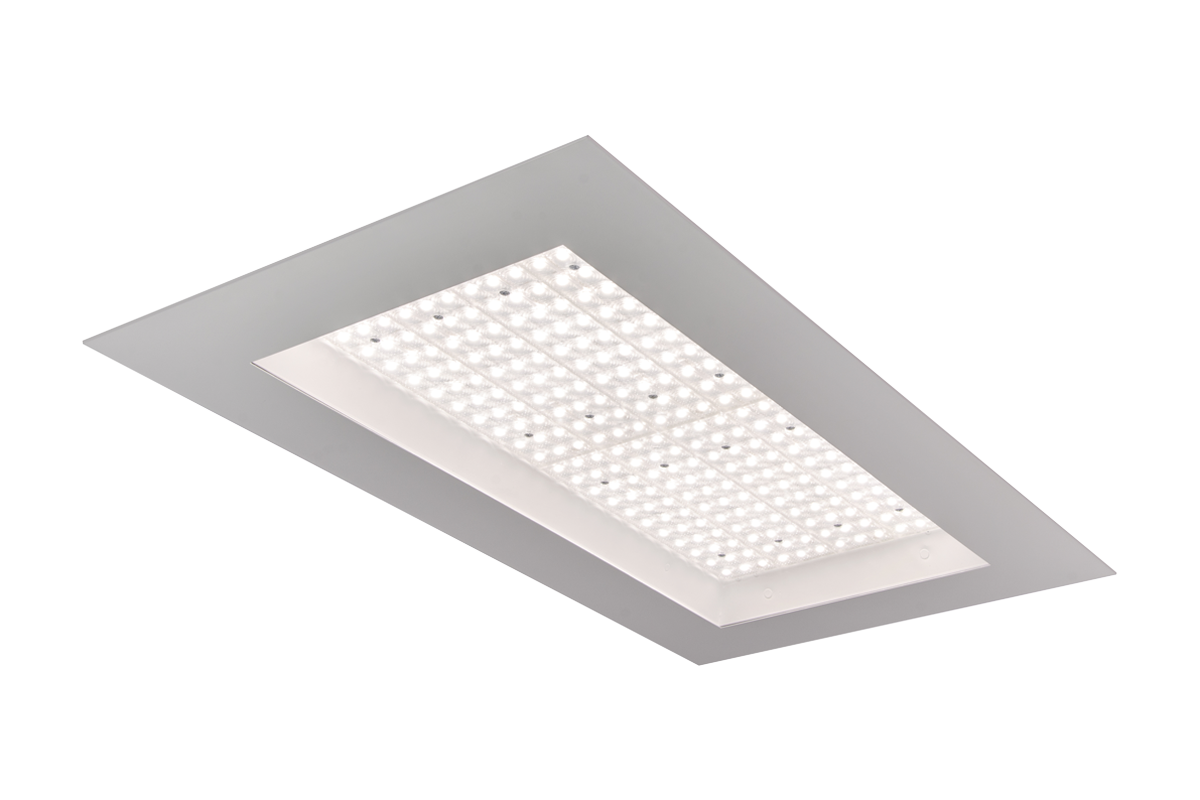

The Evo RA XL luminaire is a high output rear access walk-on luminaire. It is designed to flush fit (top & bottom ) into composite load bearing ceiling panels with a thickness of 60mm and upwards. The Evo RA XL is suitable for mounting heights of 2.8m up to 10m plus 160+ Llm/cW

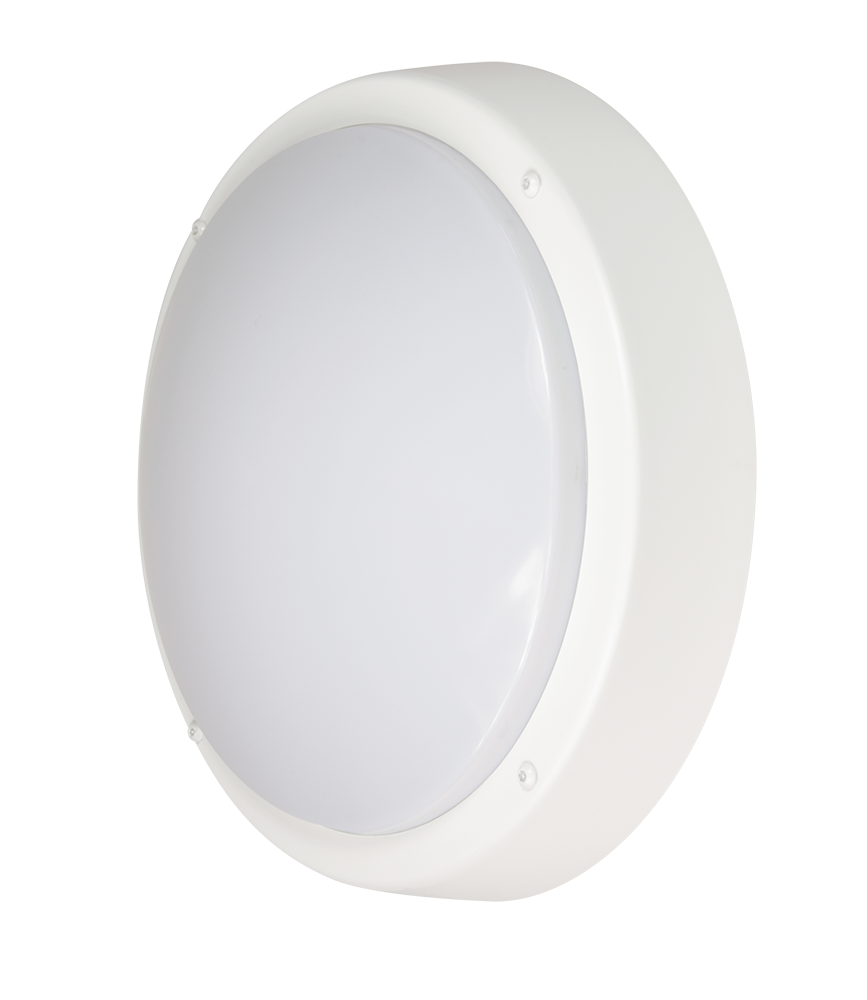

Circular recessed ligature-resistant luminaires. Choice of clear or satin 4mm thick polycarbonate diffuser secured via strong spun steel ring using tamper-resistant pin Torx screws.

Zinc coated steel body powder coated white. Frame made from 55mm chamfered profile extruded aluminium with welded and linished corners powder coated white. White EPDM closed cell gaskets Clear prismatic TP(a) rated (prisms up) controller as standard with louvre and toughened glass options High frequency gear as standard (dimming options available) Emergency versions – 3 hour self-contained as standard with self-test options

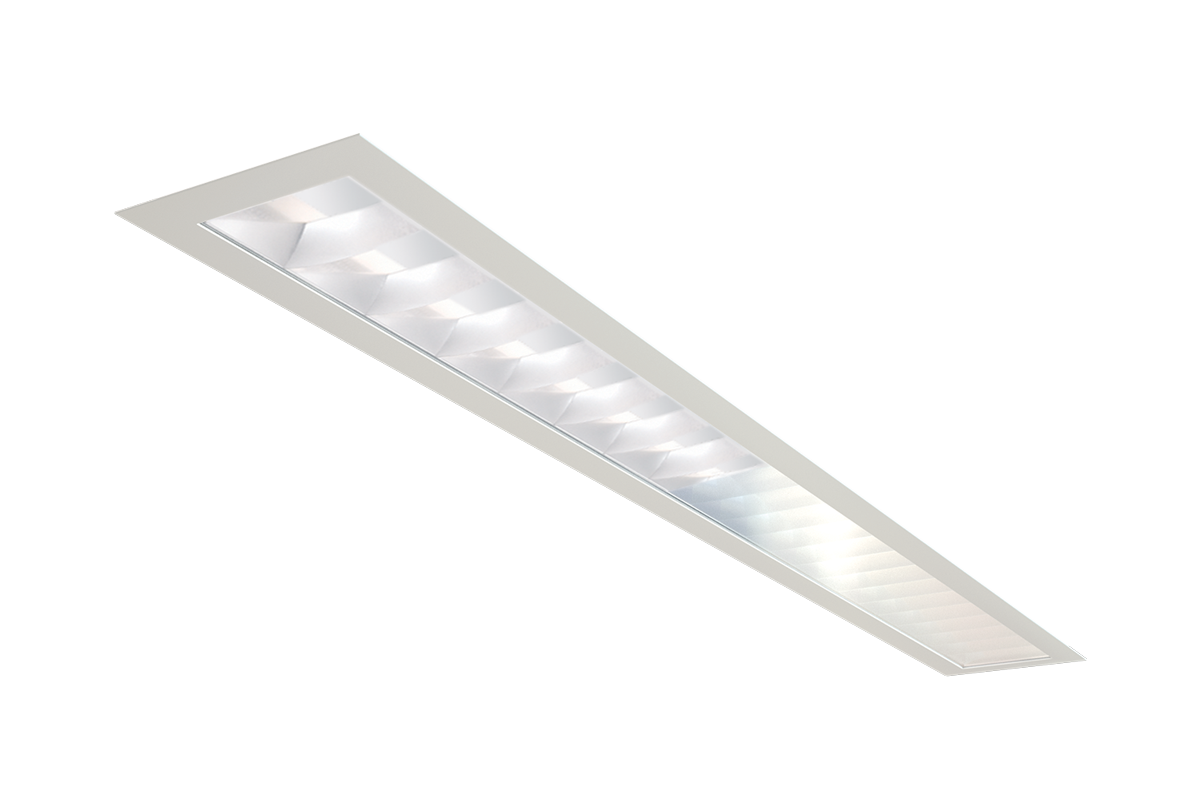

Recessed LED luminaires suitable for use in both modular and non-modular ceilings. Ultra low glare V-blade louvre or general low glare faceted cross-blade louvre set behind a clear toughened/safety glass cover, prismatic polycarbonate covers available.

Recessed luminaires with steel body and aluminium frame. Asymmetrical distribution to direct light towards the bed. Ultra low glare V-blade louvre or general low glare faceted cross-blade louvre set behind a clear toughened/safety glass cover.

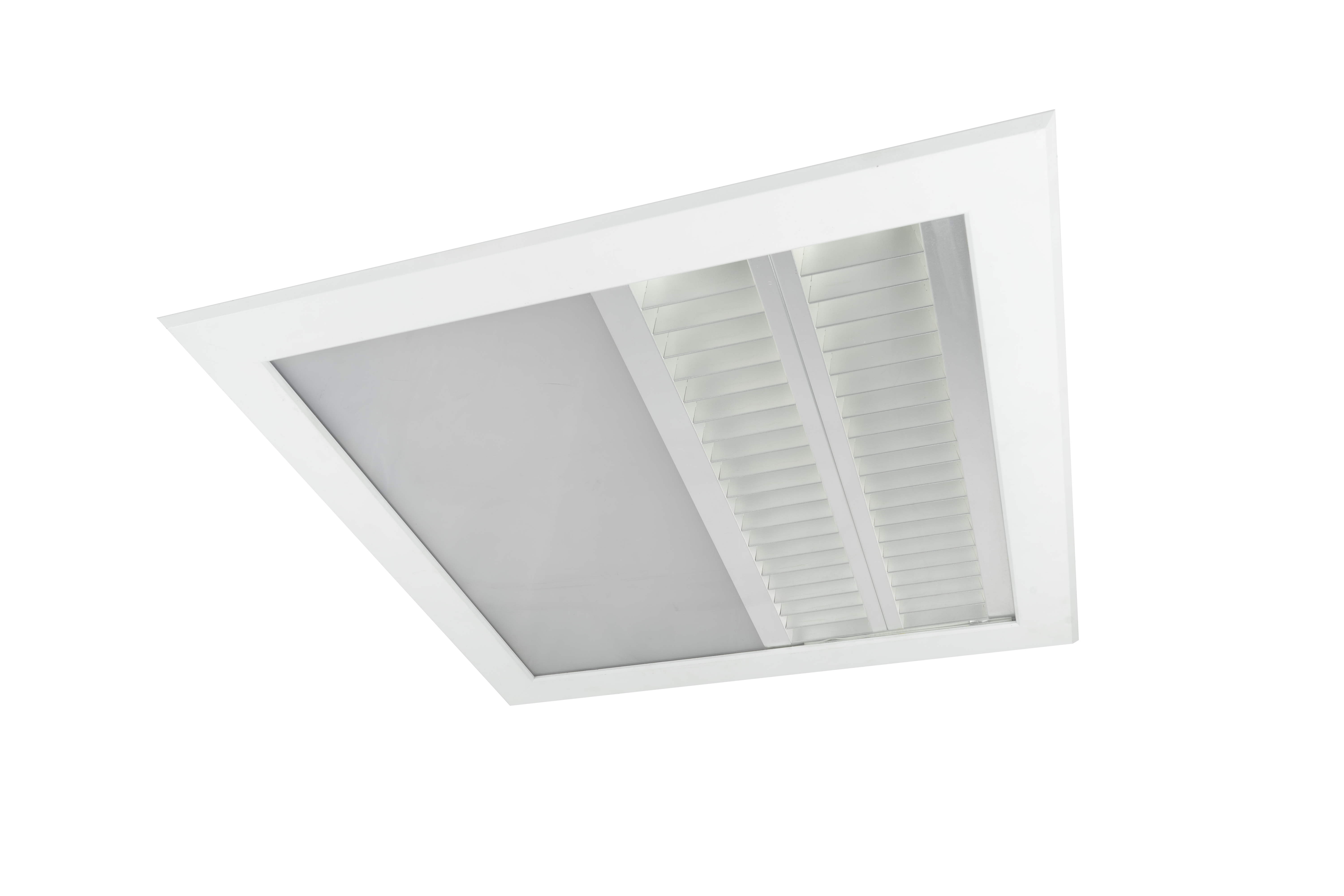

Recessed luminaires with steel body and screwless aluminium frame. Two circuits with separate optics in one luminaire delivering glare control for maximum patient comfort or high-level examination Lighting.

Zinc coated steel body powder coated white. Double extruded aluminium frames with welded and linished corners powder coated white. White EPDM closed cell gaskets Satisfies the requirements of FS209D class 100, ISO class 5 Clear prismatic TP(a) rated (prisms up) diffuser as standard with louvre and toughened glass options Emergency versions – 3 hour self-contained as standard with Dali, SmartScan and self-test options Through access option, suffix catalogue number +AH

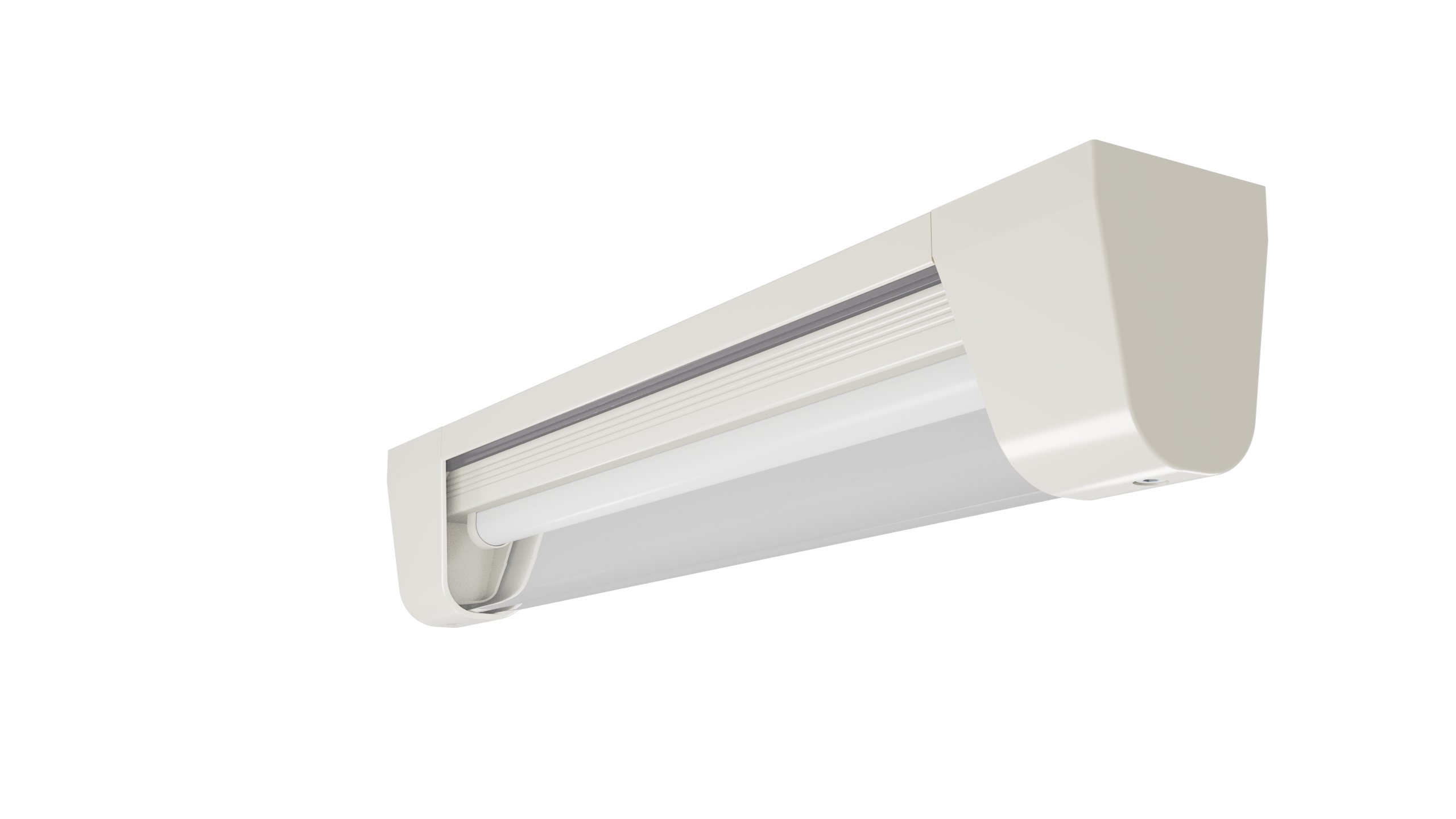

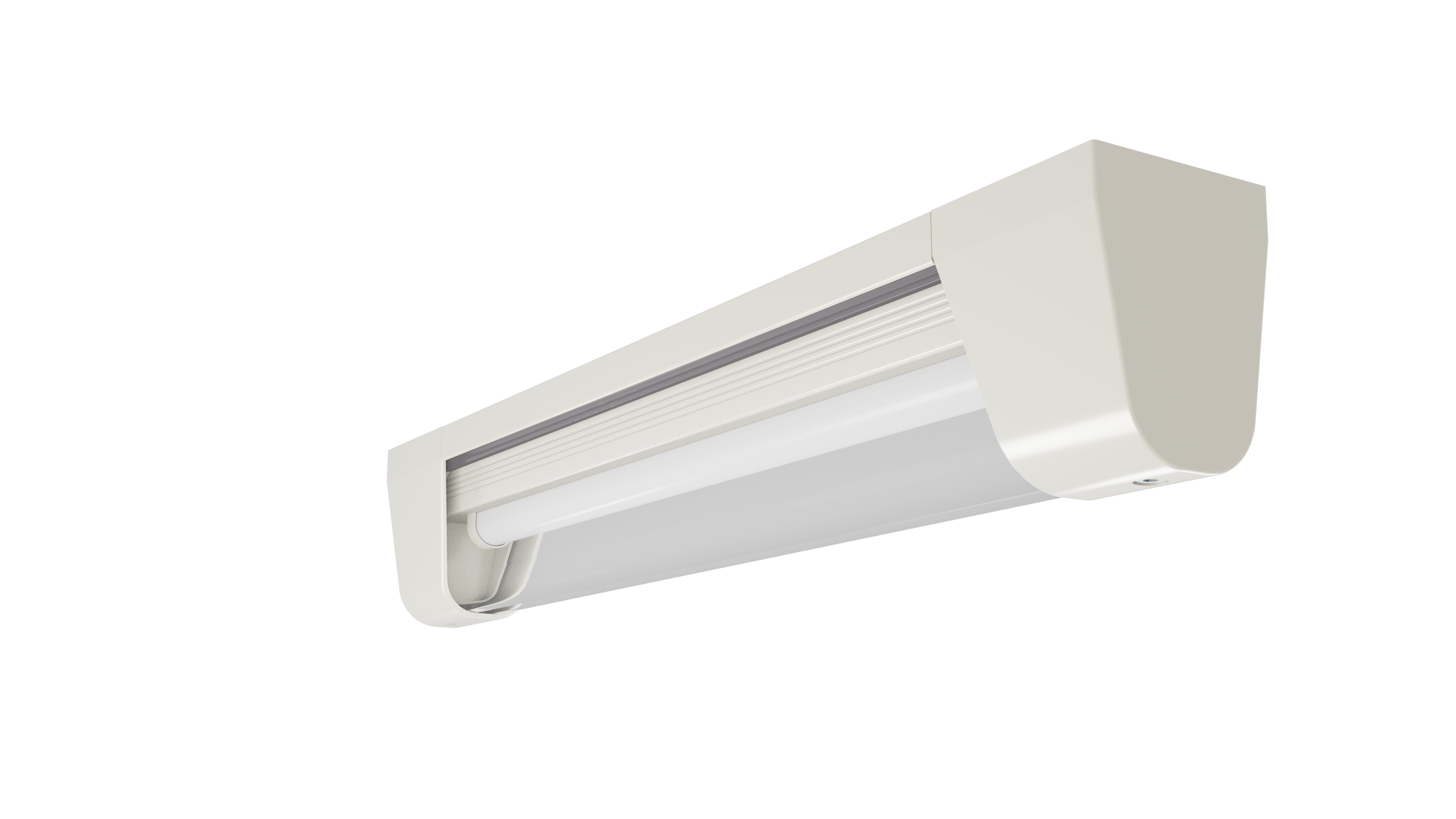

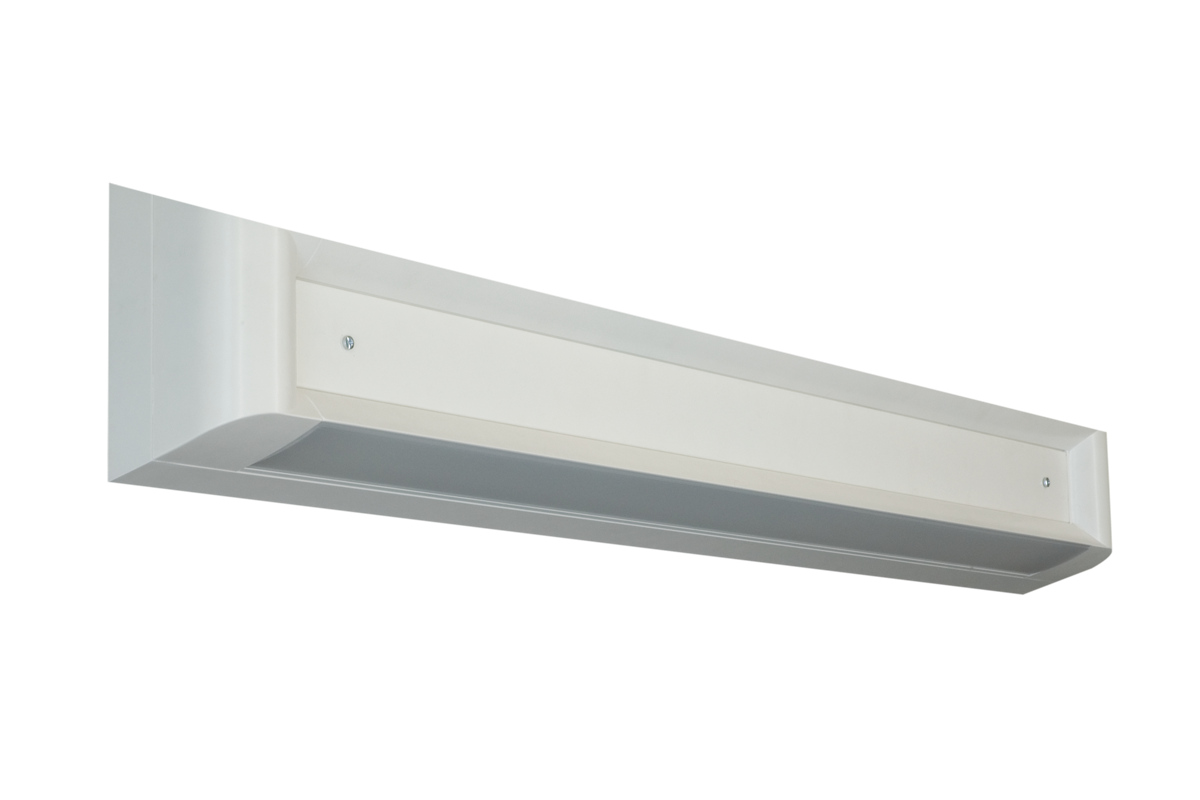

Designed for use in hospital wards and compliant with the CIBSE 2008 Hospital Lighting Guide (LG2). Separate switching facility for up and downlight operation. Optional centrally mounted 1W LED night light contained within the lower (downlight) compartment. Shallow depth extruded aluminium body with die-cast aluminium ends designed for easy cleaning and a curved and sloping top discourages use as a shelf and helps minimise dust build-up.

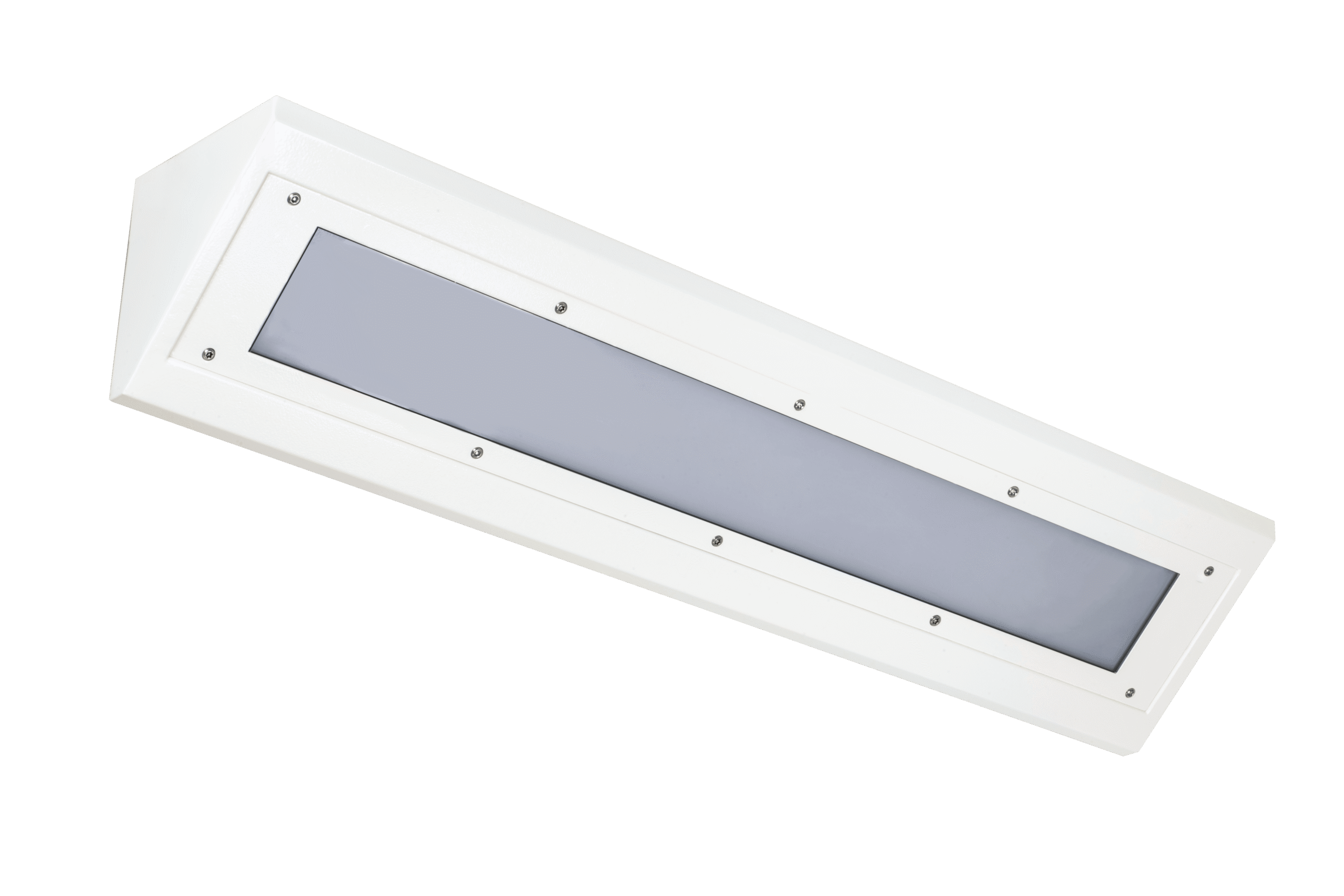

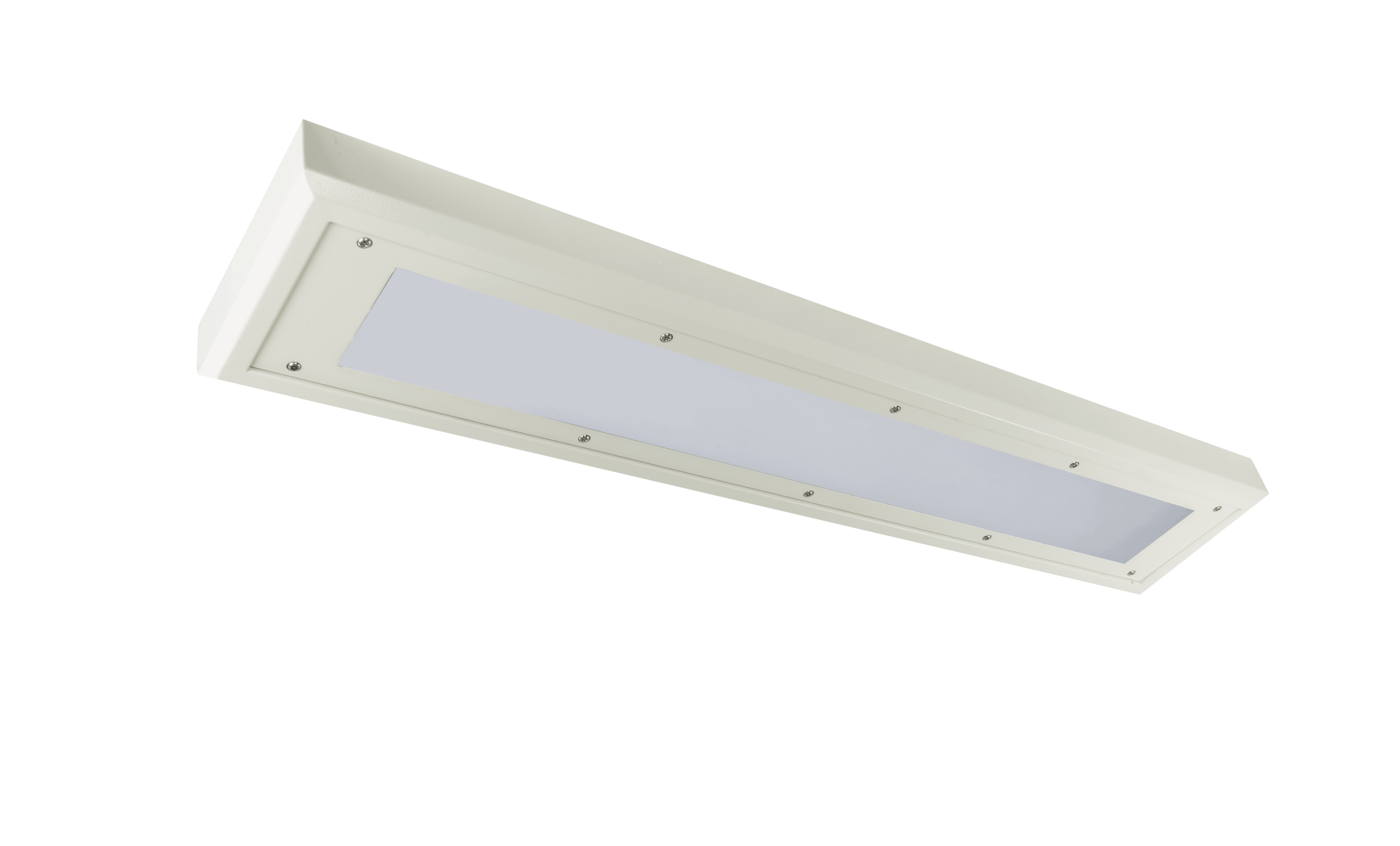

Zinc coated steel body powder coated textured white. Frame constructed from 4mm mild steel with counter bore security pin Torx fxings to reduce possible ligature risks. Ligature resistant Impact tested IK10++ Ingress tested IP65 Ministry of Justice Estates Approved – NOMS STD/E/SPEC 022 10mm TP(a) fire retardant polycarbonate diffuser 100,000 hours expected life Fully serviceable Reduced profile & fixings minimising ligature risks Secure internal fixings

Zinc coated steel body powder coated textured white. Frame constructed from 4mm mild steel with counter bore security pin Torx fxings to reduce possible ligature risks. Ligature resistant Impact tested IK10++ Ingress tested IP65 Ministry of Justice Estates Approved – NOMS STD/E/SPEC 022 10mm TP(a) fire retardant polycarbonate diffuser 100,000 hours expected life Fully serviceable Reduced profile & fixings minimising ligature risks Secure internal fixings

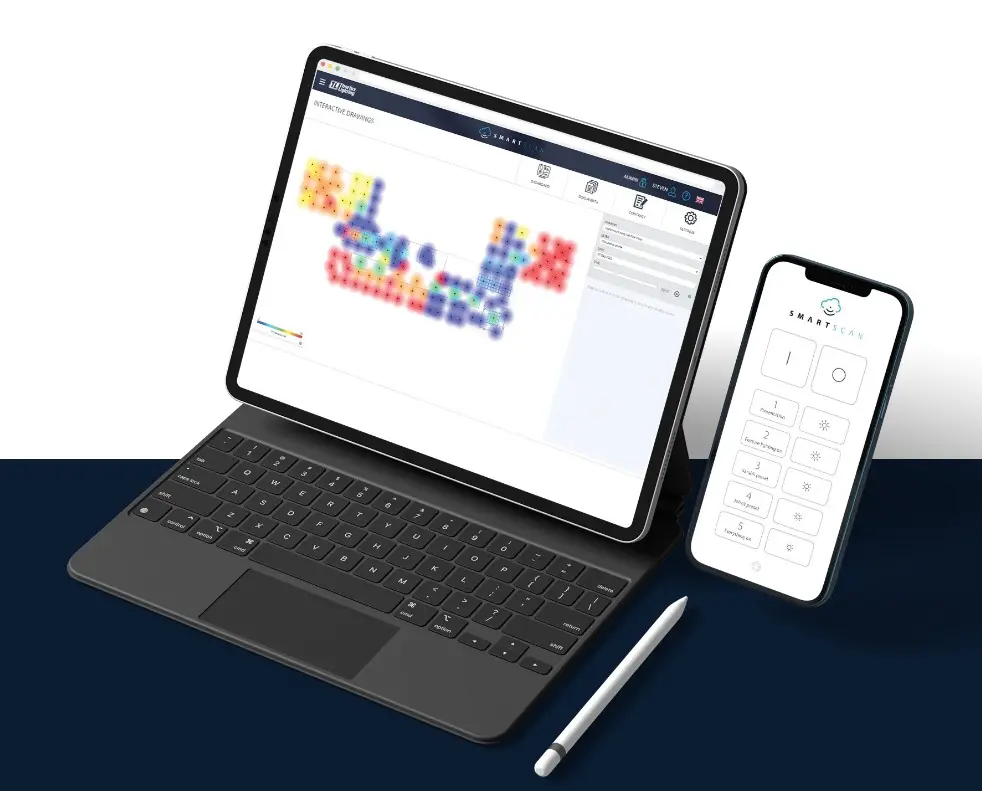

Solite Europe Limited are part of the FW Thorpe Group, which comprises of eight lighting companies serving different sectors of the professional lighting market. As part of the FW Thorpe Group we collaborate closely with our sister company Thorlux Lighting to develop lighting controls that offer the best in market efficacy and functionality for clean area, healthcare and custodial applications. At the core of our lighting controls is the Thorlux SmartScan solution.

Steel body, aluminium frame, finished full polyester non-yellowing satin white RAL 9016 for 24mm exposed tee versions and RAL 9010 for spring tee / Burgess grid options White EPDM closed cell gaskets Satin polycarbonate TP(a) diffuser fitted as standard. Optional low glare microprism lens behind clear polycarbonate cover providing less than <1500cd/m² luminance High frequency gear as standard (dimming options available) Emergency versions – 3 hour self contained as standard with self test options Through access option available on request LEDs mounted on a removable thermally managed platform for future maintenance and replacement Fitted with CRI 80 LEDs (CRI 90 option available to special order)

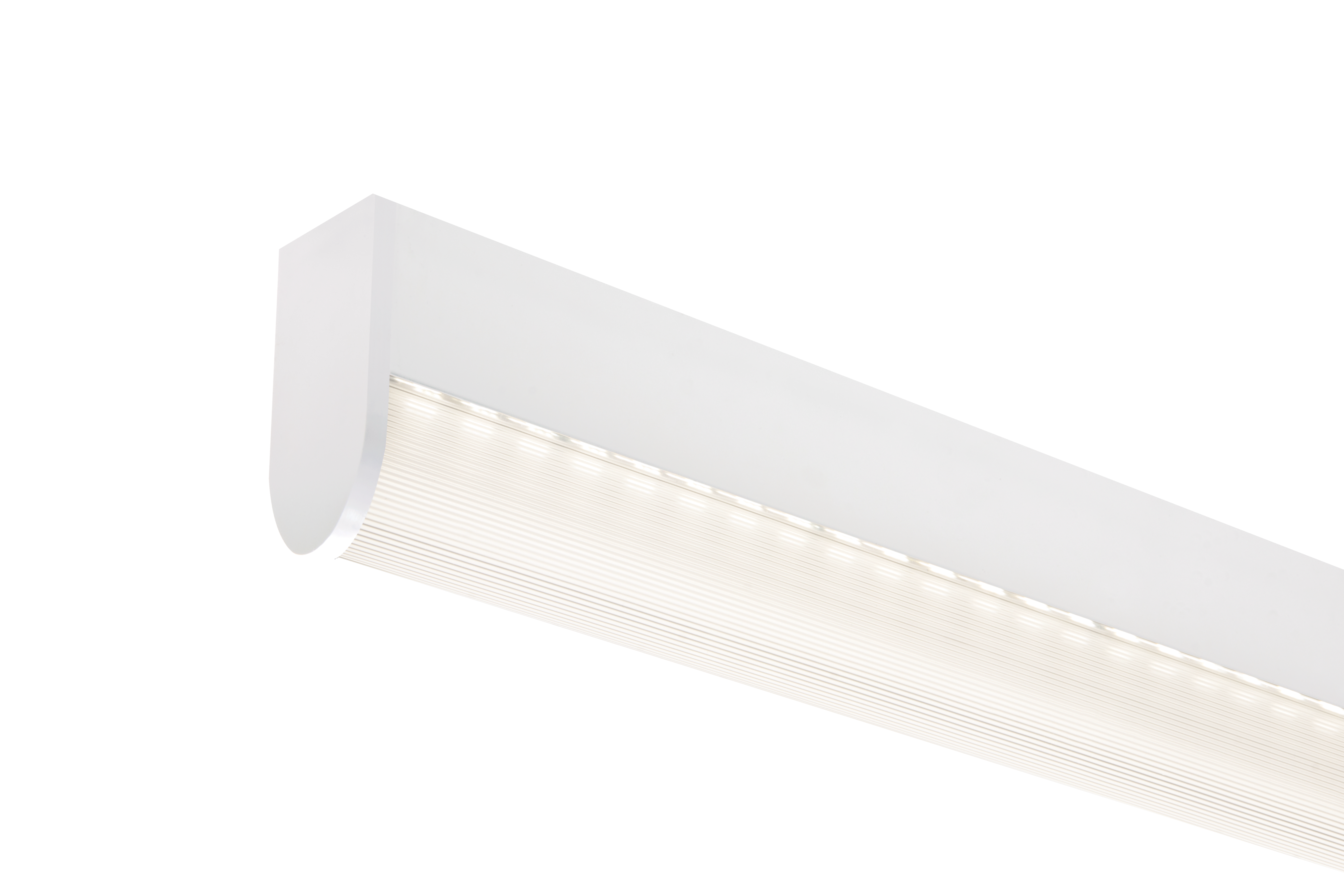

Suitable for individual or continuous mounting with specially designed teardrop diffuser for Laminar Extruded aluminium profile body powder coated white  Extruded snap-in clear PMMA Satin teardrop profile Plug-in interconnecting wiring leads and jointing kits available for continuous mounting Emergency versions – 3 hour self-contained as standard with Dali, SmartScan and self-test options. Satisfies the requirements of FS209D class 1, ISO class 3 Luminaire efficacies up to 154 Llm/cW

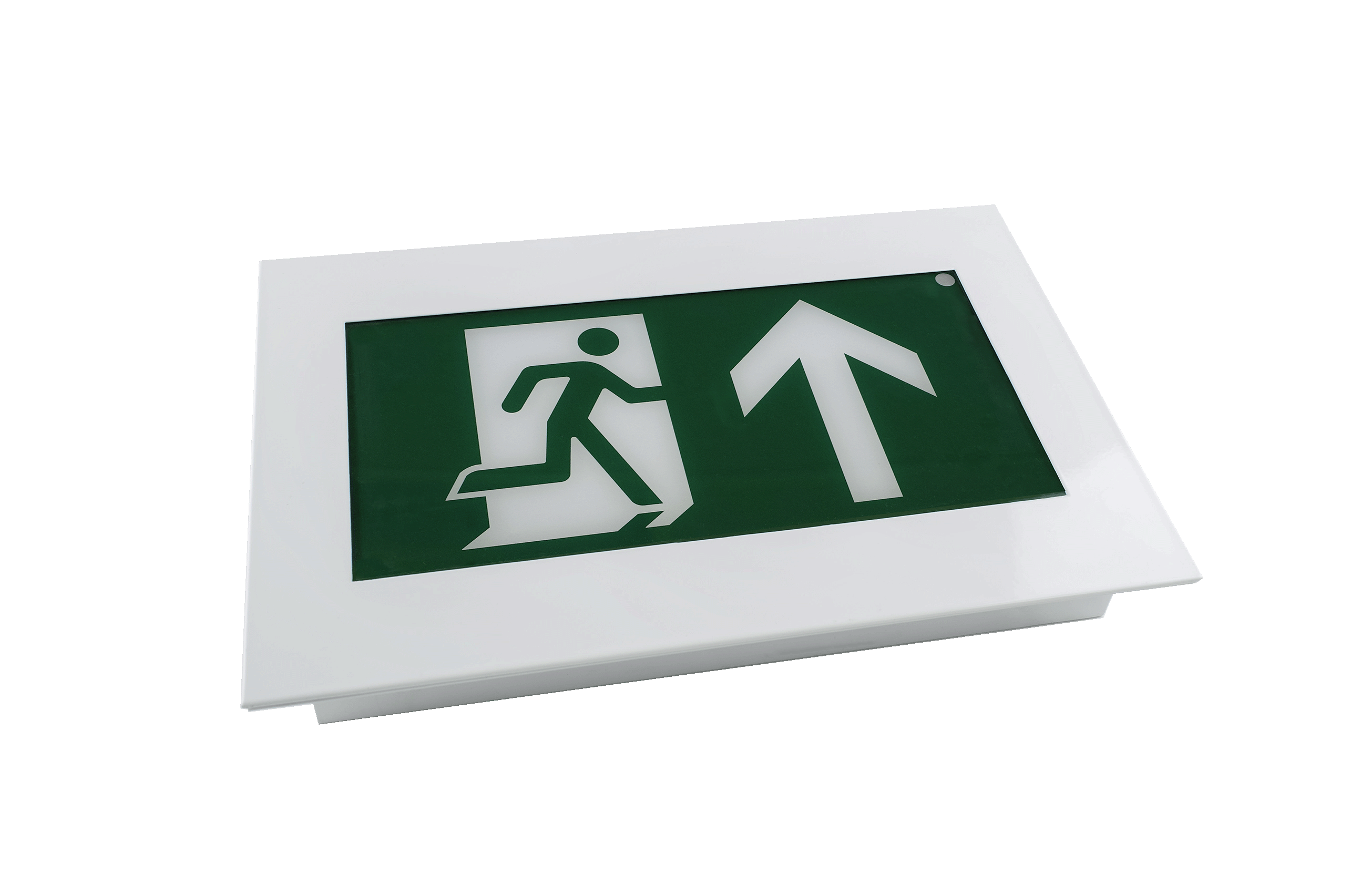

Recessed IP65 slimline exit sign designed for clean area applications, screwless front access for cleanliness, maintenance and ease of installation. Satisfies the requirements of FS209D class 100 ISO 14644 class 5 Slim 45mm recessing depth and a 51mm total depth for easy installation into cleanroom panels and plasterboard Optional stainless steel frame 30m viewing distance

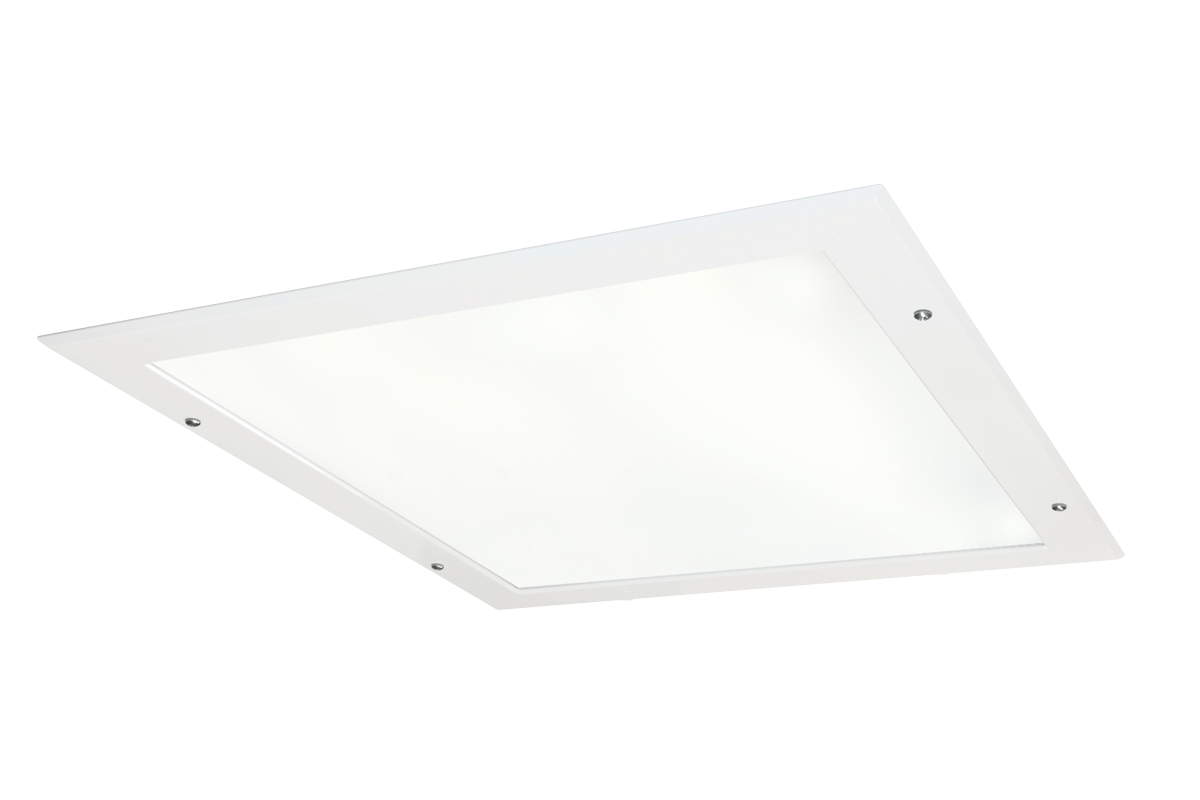

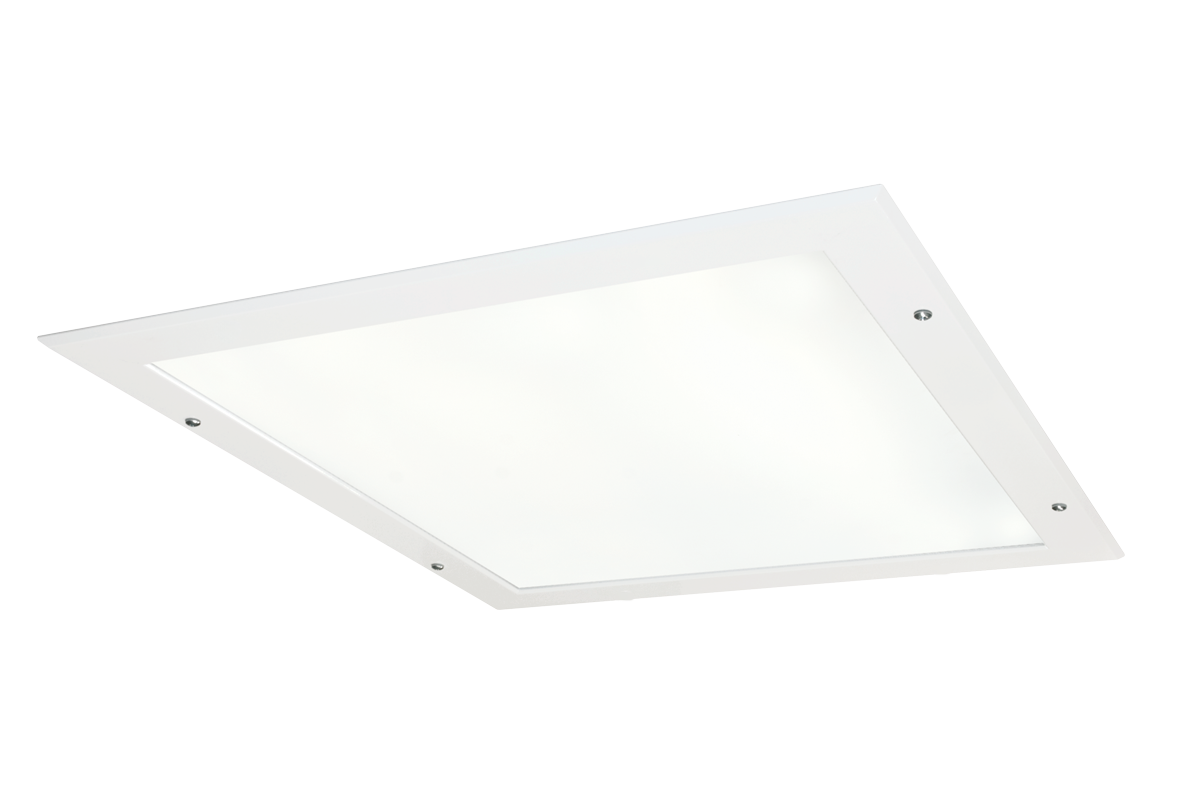

Designed to fit multiple Spring T ceiling variants, the Tau ST consists of a Zinc coated steel body powder coated white. Frame made from 55 mm chamfered profile extruded aluminium with welded and linished corners powder coated white. White EPDM closed cell gaskets Satin polycarbonate TP(a) diffuser fitted as standard Optional LG7 compliance enabling deglaring lens and either toughened glass or clear polycarbonate front panel combination providing less than < 1500cd/m2 (suffix catalogue number with LG for glass or LP for clear polycarbonate). High frequency gear as standard (dimming options available) Emergency versions – 3 hour self-contained as standard with self-test options

Zinc coated steel body powder coated white. Frame made from 55 mm chamfered profile extruded aluminium with welded and linished corners powder coated white. White EPDM closed cell gaskets Satin polycarbonate TP(a) diffuser fitted as standard Optional LG7 compliance enabling deglaring lens and either toughened glass or clear polycarbonate front panel combination providing less than < 1500cd/m2 (suffix catalogue number with LG for glass or LP for clear polycarbonate). High frequency gear as standard (dimming options available) Emergency versions – 3 hour self-contained as standard with self-test options Through access option, suffix catalogue number ‘+ AH’ LEDs mounted on removable thermally managed platform for future maintenance and replacement Fitted with CRI 80 LEDs (CRI 90 option available to special order).

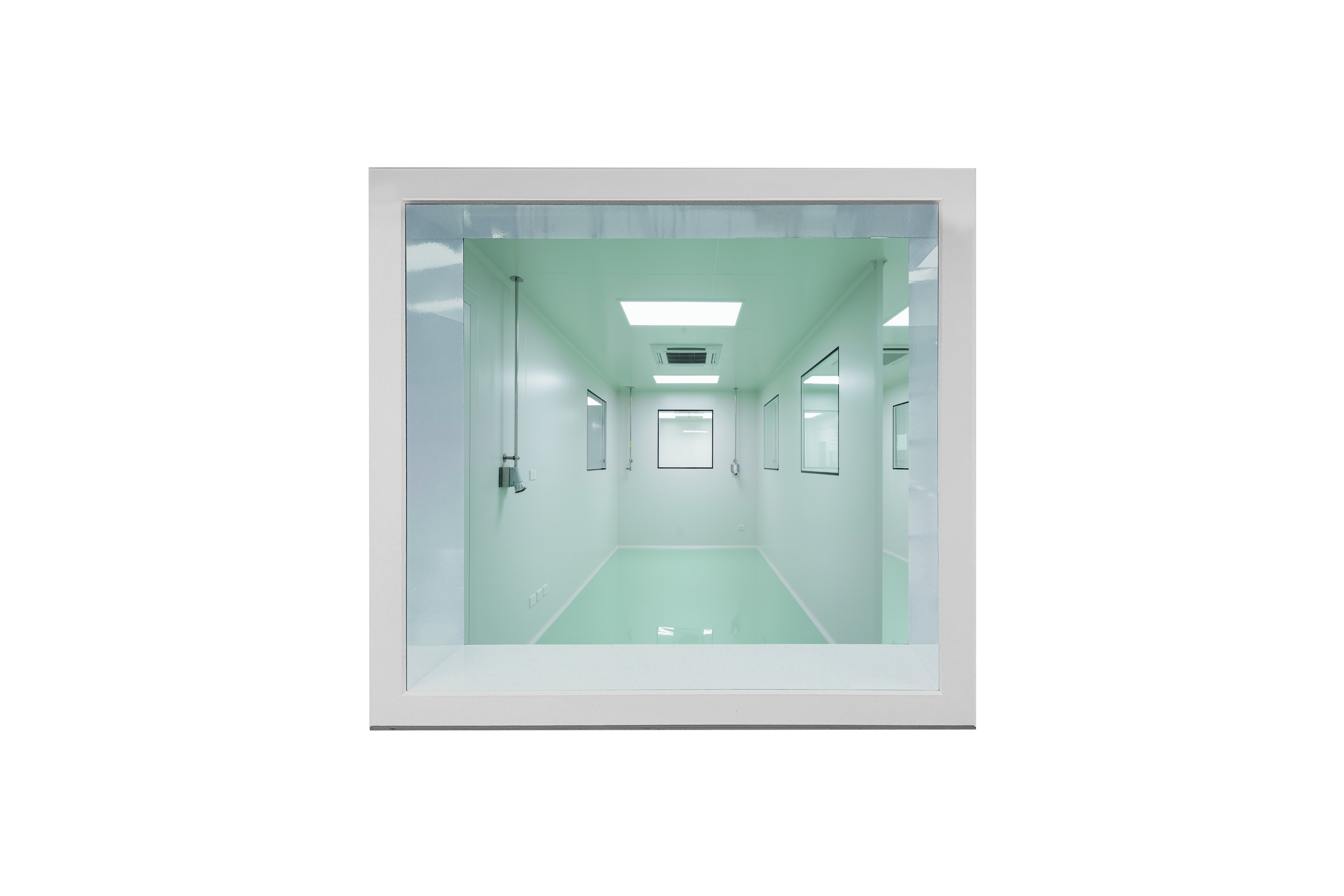

Solite Vision Panels are designed and manufactured to integrate seamlessly with Cleanroom modular wall systems.

Zinc coated steel body and frame powder coated white. The flush mount walk on Zeta luminaire is designed to flush fit (Top & Bottom ) into composite load bearing ceiling panels 50mm thick and upwards. The unique integrated central strengthening member gives the luminaire full walk on capability

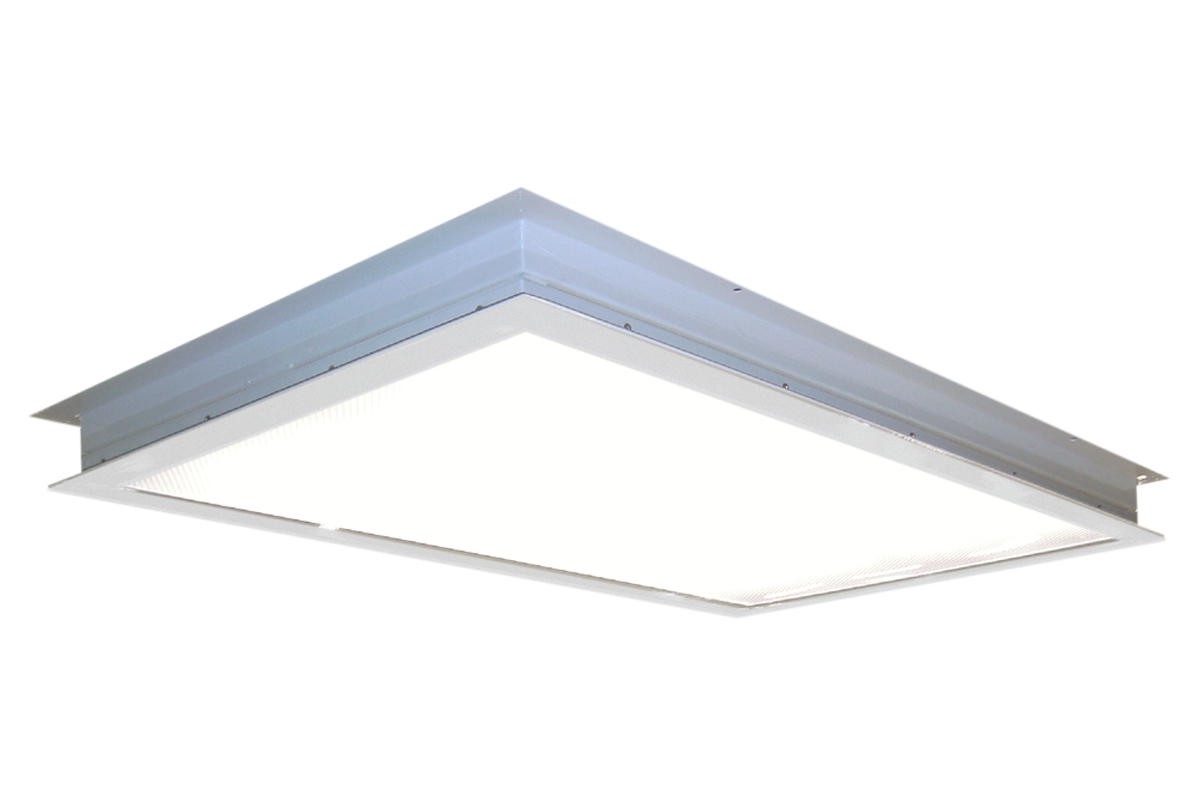

Zinc coated steel body and frame powder coated white. Frame made with welded and linished corners powder coated white. The flush mount walk on Zeta luminaire is designed to flush fit (Top & Bottom ) into composite load bearing ceiling panels 50mm thick and upwards. The unique integrated central strengthening member gives the luminaire full walk on capability and provides a separate gear compartment which also acts as a safety rail to prevent accidental fall through when the lid is removed for maintenance.

Zinc coated steel body and frame powder coated white. Frame made with welded and linished corners powder coated white. The flush mount walk on Zeta luminaire is designed to flush fit (Top & Bottom ) into composite load bearing ceiling panels 50mm thick and upwards. The unique integrated central strengthening member gives the luminaire full walk on capability and provides a separate gear compartment which also acts as a safety rail to prevent accidental fall through when the lid is removed for maintenance.
